Reverse Osmosis Basic 5 Stage — 1/4-inch Tubing

Description

Traditional 5-Stage Reverse Osmosis Filtration

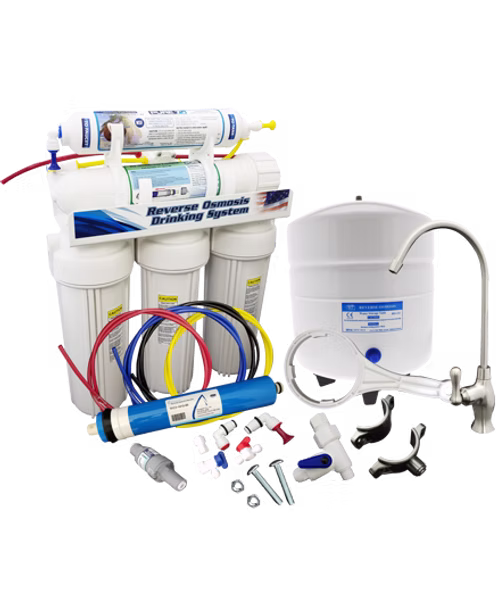

The PureT RO550-905EZ combines proven reverse osmosis technology with conventional replaceable filtration cartridges and a pressurized storage tank.

Rated at 50 gallons per day, the system uses sediment filtration, two carbon-block stages, an RO membrane and a final GAC polishing filter to treat drinking and cooking water at the point of use. Purified water is produced gradually and stored in the included pressurized tank so it is available when the drinking-water faucet is opened.

5-STAGE FILTRATION

Stage 1: 5-Micron Sediment Filter
Helps capture dirt, rust, sand and suspended particles before water reaches the carbon filters.

Stage 2: GAC, Granular Activated Carbon
 Highly effective at reducing chlorine, volatile organic compounds (VOCs), pesticides, industrial solvents, PFAS, and taste- or odor-producing compounds like hydrogen sulfide

Stage 3: 5-Micron Coconut Shell Carbon Block
Provides an additional carbon-filtration stage before the RO membrane.

Stage 4: 50 GPD Reverse Osmosis Membrane
The primary separation stage, the membrane can provide 96–99% rejection* of specified dissolved contaminants under applicable operating conditions.

• tested at a feed TDS at 500 ppm

Stage 5: Coconut Shell GAC Polishing Filter
Provides final taste and odor polishing as stored RO water travels from the tank to the drinking-water faucet.

KEY FEATURES

• 5-stage reverse osmosis filtration
• 50 GPD production rating

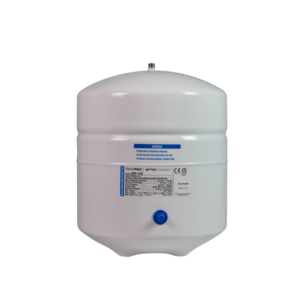

• 3.2-gallon pressurized storage tank
• Dedicated long-reach brushed nickel faucet
• 5-micron sediment prefilter
• Two 5-micron coconut-shell carbon-block filters

• High-rejection RO membrane
• Final GAC polishing filter
• 1/4-inch quick-connect fittings
• No electricity required for the standard system
• Complete installation hardware included
• Designed for residential under-sink installation

SPECIFICATIONS

WHAT’S INCLUDED

The current package includes:

• PureT RO550-905EZ system
• 3.2-gallon pressurized storage tank
• Tank ball valve
• Long-reach brushed nickel drinking-water faucet
• Filter-housing wrench
• Drain saddle kit
• Feed water valve
• Approximately 30 feet of 1/4-inch tubing
• Quick-connect fittings

FILTER REPLACEMENT

Sediment Filter: approximately every 6–12 months

Carbon Block Filters: approximately every 6–12 months

RO Membrane: approximately every 2–3 years

Final GAC Polishing Filter: approximately every 12 months

Actual replacement intervals depend on incoming water quality, water consumption and system operating conditions.

INSTALLATION

The IRO550-905EZ is designed for under-sink point-of-use installation.

It requires connections to the cold-water supply, drain, storage tank and dedicated drinking-water faucet. The system uses quick-connect fittings and does not require electrical power.

NEED PROFESSIONAL INSTALLATION?

Infinite Acqua Solutions offers professional reverse osmosis installation and service in select Southern California service areas. Contact us to verify availability in your area.

Nationwide customers can purchase the system from IAS and arrange installation locally.

WARRANTY

18 months
